Industrial automationStatus: Working prototype

Modular industrial touch panel and control platform

Custom hardware, firmware, communication, motion control and HMI integrated into one machine-control ecosystem, from our STM32 main controller to the touch panel the operator uses.

Illustration of the platform: the STM32 main controller, a stepper control board and a Wi-Fi and Bluetooth board linked to a touch panel that runs a CNC machine

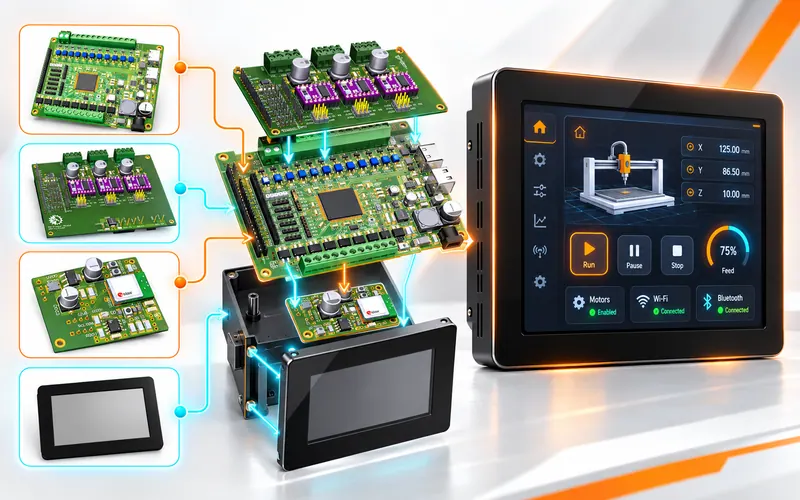

Illustration of the SMZ-F4000 controller board with its stacking boards, an enclosure and a touch panel

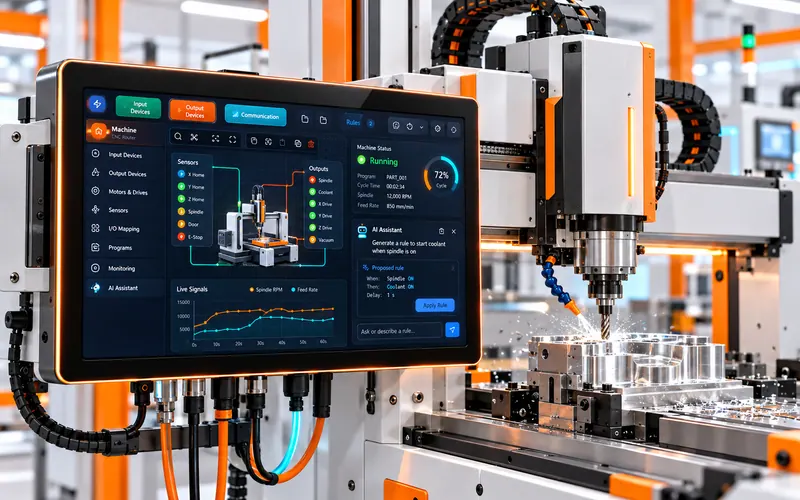

Illustration of a touch panel on a CNC router, showing live signals and machine controls

One platform, four building blocks

Each block is our own design. Start with the main controller and add the others as the machine needs them.

building blocks, one platform
4
team for hardware, firmware and HMI
1
  • Main controller board

    STM32, isolated I/O, a protected 9–24 V input and USB-C.

  • Stepper control board

    Integrated stepper drivers for precise, smooth motion.

  • Wi-Fi and Bluetooth board

    Wireless links to phones, tablets and the network.

  • Touch-panel HMI

    Machine status, jog controls, start and stop for the operator.

The challenge

A typical machine combines a PLC, separate motor drives, a wireless module and a touch screen from different makers, each with its own tools. Every hand-off between them is a place where a project stalls, and nobody owns the whole system.

What we built

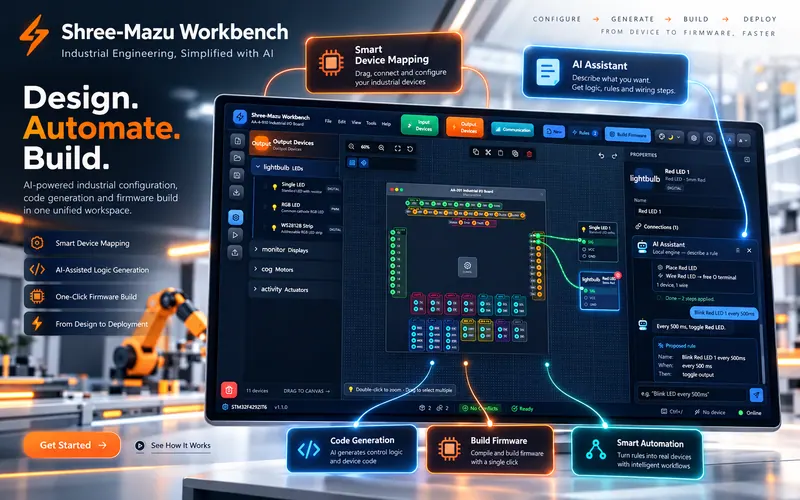

We designed the control system as one modular platform. The SMZ-F4000 main controller is built around an STM32, with isolated I/O, a protected 9–24 V input and USB-C. Add-on boards bring stepper control with integrated drivers, and Wi-Fi and Bluetooth links. Our firmware ties the boards together over USB, UART, CAN and I²C, and a touch-panel HMI shows the machine's status and gives the operator jog, start and stop controls. The whole platform is programmed with the Shree-Mazu Workbench, or in C with standard STM32 tools.

Engineering highlights

  • STM32 main controller with isolated I/O, a protected 9–24 V input and USB-C
  • Stepper control board with integrated drivers for precise motion
  • Wi-Fi and Bluetooth board for wireless links
  • Firmware that connects the boards over USB, UART, CAN and I²C
  • Touch-panel HMI with machine status, jog controls, start and stop
  • Programmed with the Shree-Mazu Workbench, or in C with standard STM32 tools

From firmware to machine operation

  1. 01

    Firmware control

    The STM32 main controller runs the machine logic, reads the isolated inputs and drives the outputs.

    • Machine logic
    • Isolated I/O
  2. 02

    Communication

    The boards and the touch panel talk over USB, UART, CAN and I²C, so modules can be added or swapped.

    • USB
    • UART
    • CAN
    • I²C
  3. 03

    Motion control

    The stepper board turns commands into precise, repeatable motion on each axis.

    • Stepper drive
    • Positioning
  4. 04

    Machine operation

    The touch panel shows the machine's status and lets the operator jog, start and stop it.

    • Status
    • Jog
    • Start and stop
